Mesh

Mesh:

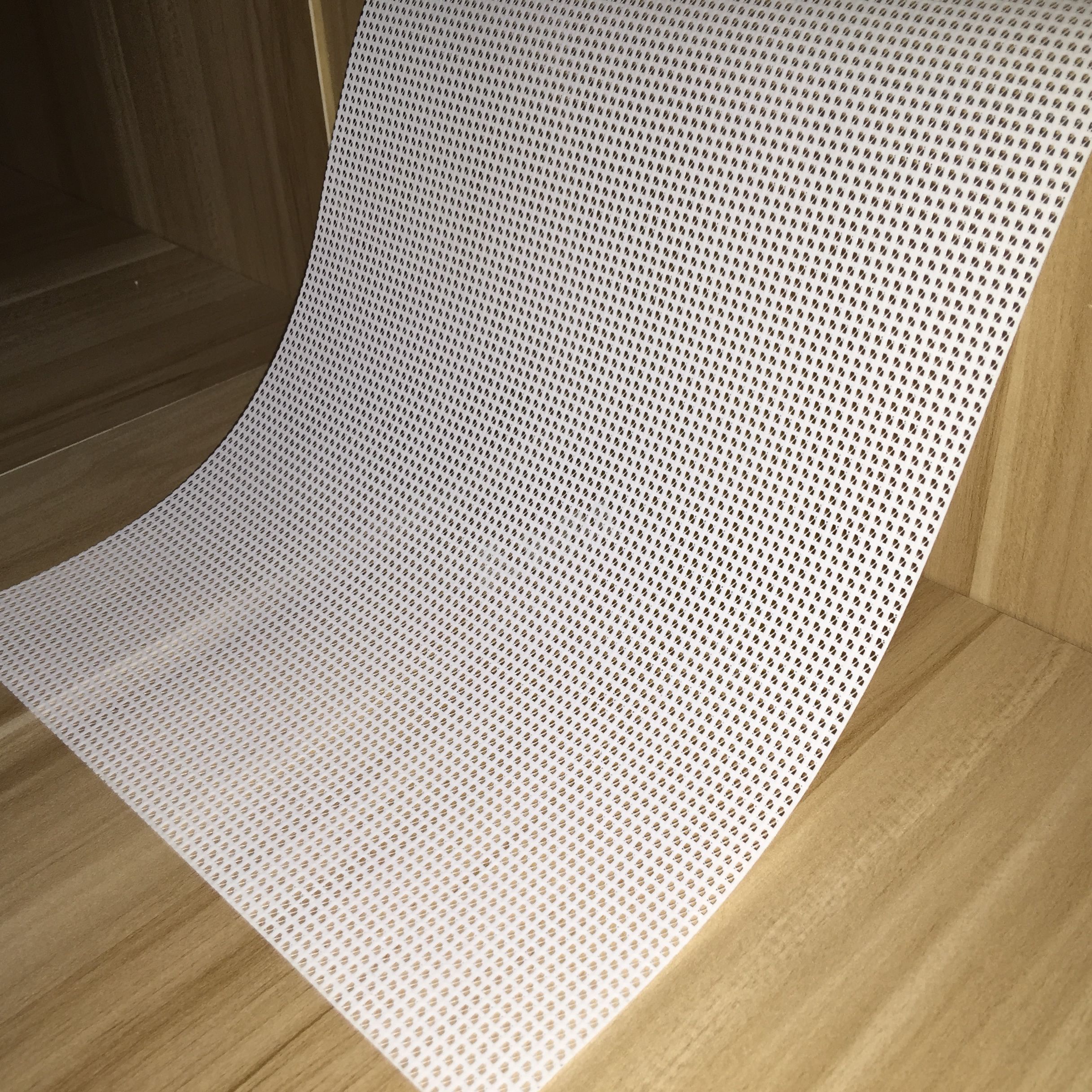

Open structure of the Coated Mesh allows wind blow, which make it perfectly for outdoor large format advertising. It's characteristic as ''one way vision'', make it ideal for building covering, even indoor curtain!

Features：

1) Good ventilation
2) High strength and tough tear resistance
3) Perfect printing ability in solvent base and UV base
4) Available in backing liner
5) Favorable Chemical Stability
6) Outdoor Durability and Weather Resistant (FR, UV, Rain, Fungi, Frost, etc.)

Applications：

1) Super wide billboard

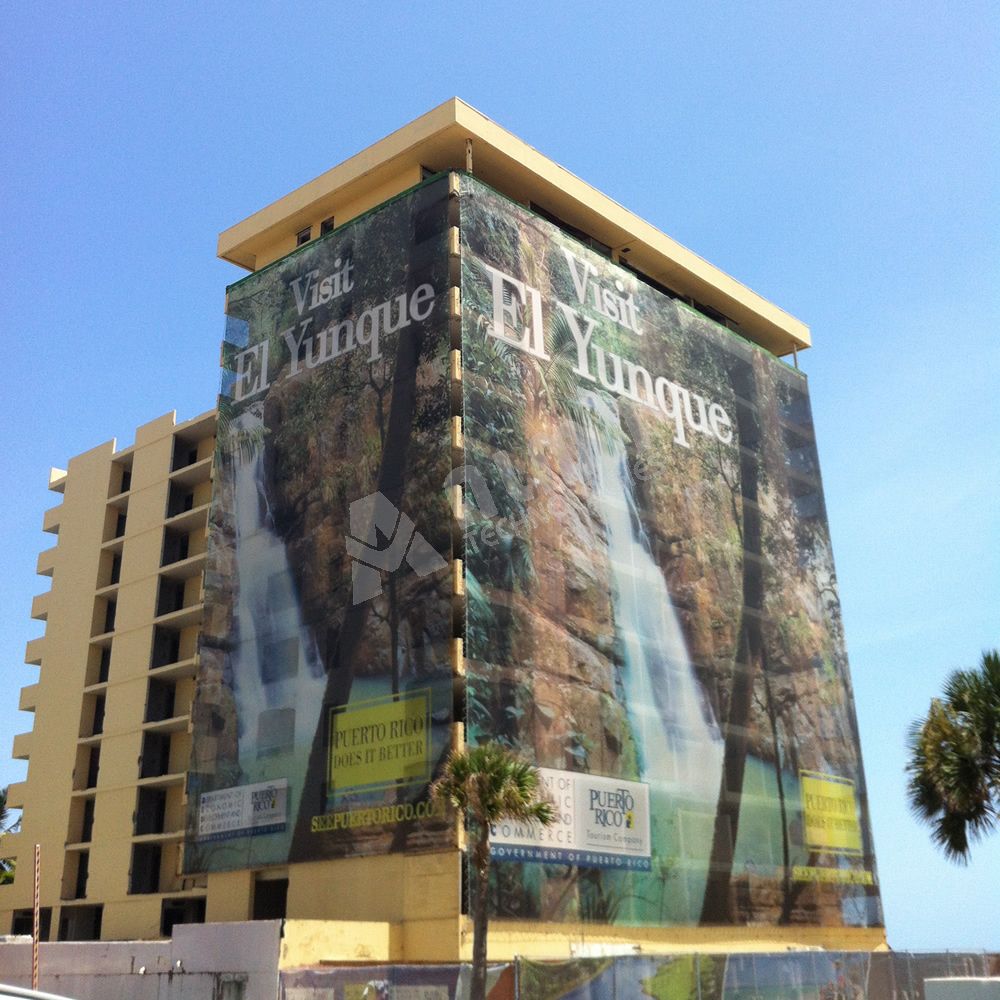

2) Building Wrapping
3) Decorative curtain
4) Display

Compatible Ink:

SOL/ECO SOL/UV

Specifications：

Data Sheet

Item No.	Base Fabric	Weight	Tensile strength		Tear strength
Item No.	Base Fabric	gsm / oz	N/5cm		N/5cm
Coated Mesh
AM-006	1000D1000D 66/inch	210 / 6	1000	950	200	200
AM-009	1000D1000D 99/inch	270 / 8	1000	1000	220	220
AM-012	1000D1000D 1212/inch	270 / 8	1200	1200	250	250
AM-913	1000D1000D 913/inch	270 / 8	1000	1200	220	250
AM-918	1000D1000D 918/inch	270 / 8	1000	1300	250	250
AM-1812L	500D1000D 1218/inch	380 / 11	900	1000	190	210

Note：	Above mentioned physical properties are average of test results, provided for reference only.
